Schneider Pendant station XAC-A pistol grip
- BrandSchneider
- ID
Schneider Pendant station XAC-A pistol grip 2 push button 1 Emergency stop
- FeaturesElectrical Equipment & Supplies>>Switches>>Push Button Switches
- Specifications
Schneider quality XAC remote Pendant control station push button switch
Schneider quality XAC Pendant control station push button switch
Schneider quality XAC Pendant control station push button switch
- Others
Drag
|

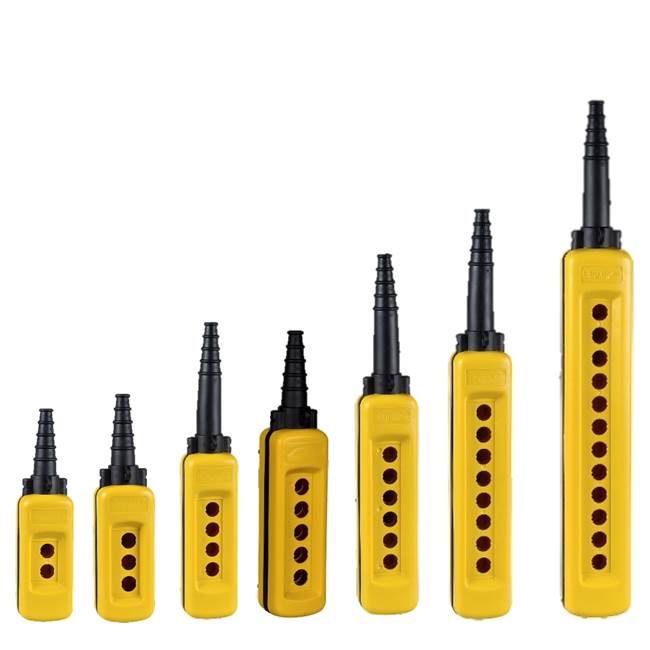

Empty pendant control station XAC-A2 ~12 vertical openings XACA02/XACA03/XACA04/ XACA05/XACA06/XACA08/ XACA12 |

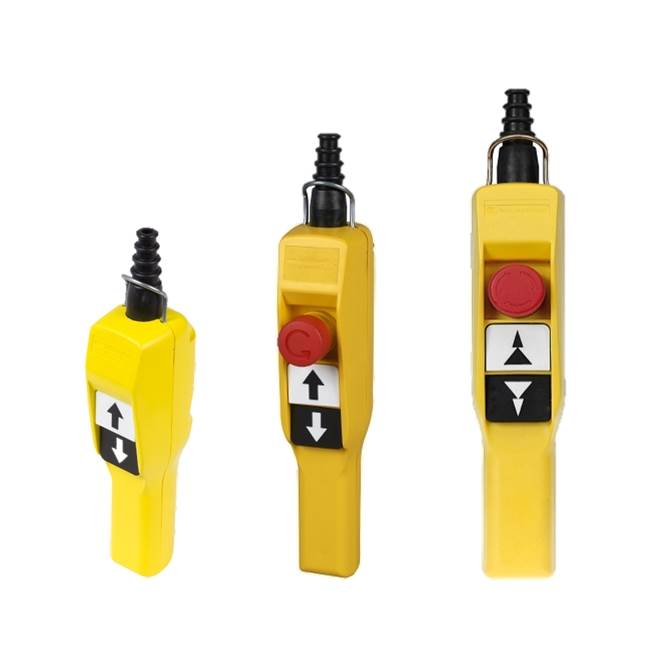

Pendant stationXAC-A pistol grip2 push buttons / 2 push buttons 1 Emergency stop XACA201/XACA2013/XACA2073 |
Pendant control station XAC-A2 pushbuttons/ 2 pushbuttons 1 Emergency stop/ 4 pushbuttons/ 4 pushbuttons 1 Emergency stop XACA271/XACA2713/ XACA471/XACA4713 Product Description
|

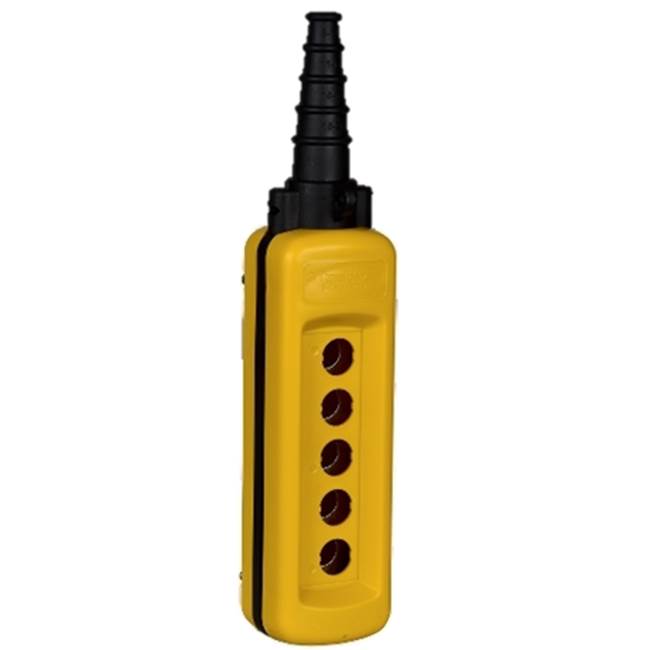

Empty pendant control station XAC-A
2 ~12 vertical openings
XACA02/XACA03/XACA04/XACA05/XACA06/XACA08/XACA12
|
Main
|
|
|
range of product
|
Harmony XAC
|
|
product or component type
|
Pendant control station
|
|
device short name
|
XACA
|
|
Complementary
|
|
|
control station type
|
Double insulated
|
|
enclosure material
|
Polypropylene
|
|
electrical circuit type
|
Control circuit
|
|
enclosure type
|
Empty enclosure
|
|
number of cut-out
|
2,3,4,5,6,8,12 cut-outs
|
|
control station colour
|
Yellow
|
|
cable entry
|
Rubber sleeve with stepped entry 8...26 mm
|
|
guard rail
|
Without
|
|
vertical operator cut-out centre
|
30 mm
|
|
standards
|
EN/IEC 60204-32
EN/IEC 60947-5-1 UL 508 CSA C22.2 No 14 |
|
product certifications
|
CCC
GOST |
|
protective treatment
|
TH
|
|
ambient air temperature for operation
|
-25...70 °C
|
|
ambient air temperature for storage
|
-40...70 °C
|
|
vibration resistance
|
15 gn 10...500 Hz IEC 60068-2-6
|
|
shock resistance
|
100 gn IEC 60068-2-27
|
|
overvoltage category
|
Class II IEC 61140
|
|
IP degree of protection
|
IP65 IEC 60529
|
|
IK degree of protection
|
IK08 EN 50102
|
|
mechanical durability
|
1000000 cycles
|
|
product weight
|
0.44~1kg
|

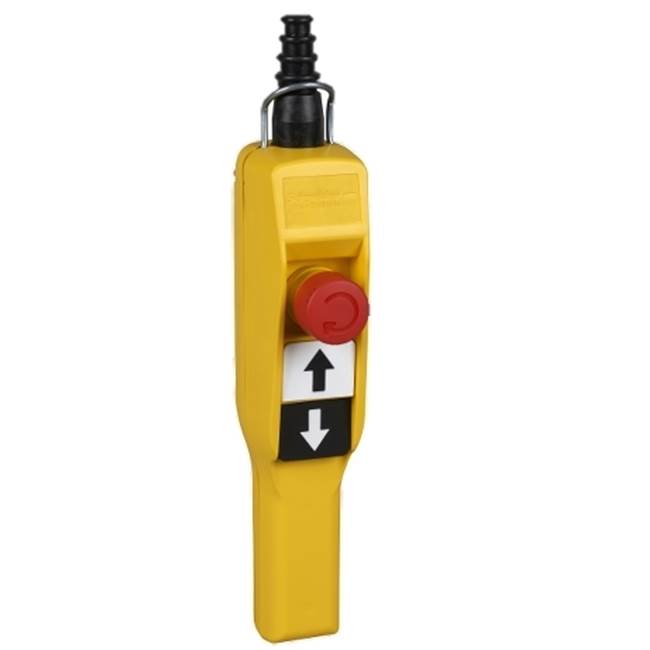

Pendant station XAC-A pistol grip
2 push button 1 Emergency stop
XACA201/XACA2013/XACA2073
|
Main
|
|
|
range of product
|
Harmony XAC
|
|
product or component type
|
Pendant control station
|
|
device short name
|
XACA pistol grip
|
|
Complementary
|
|
|
control station type
|
Double insulated
|
|
enclosure material
|
Polypropylene
|
|
control type
|
Intuitive
|
|
electrical circuit type
|
Control circuit
|
|
enclosure type
|
Complete ready for use
|
|
control station application
|
Control of single speed hoist motor
|
|
|
2 push-buttons
|
|
2 push-buttons + 1 emergency stop
|
|
|
|
First push-button 1 NO raise, slow
Second push-button 1 NO lower, slow |
|
First push-button 1 NO raise, slow
Second push-button 1 NO lower, slow Stop push-button Ø 30 mm 1 NC latching |
|
|
First push-button 2 NO (2 step) raise, slow-fast
Second push-button 2 NO (2 step) lower, slow-fast Stop push-button Ø 30 mm 1 NC latching |
|
|
|
ZB2BE101 for each direction
|
|
ZB2BE101 for each direction
ZB2BE102 for emergency stop |
|
|
ZB2BE102 for emergency stop
ZB2BE101 + ZB2BE201 for each direction |
|
|
mechanical interlocking
|
With mechanical interlocking
|
|
control station colour
|
Yellow
|
|
connections - terminals
|
Screw clamp terminals 1 x 2.5 mm² with or without cable end
Screw clamp terminals 2 x 1.5 mm² with or without cable end |
|
standards
|
EN/IEC 60204-32
EN/IEC 60947-5-1 UL 508 CSA C22.2 No 14 |
|
product certifications
|
CSA
UL |
|
protective treatment
|
TH
|
|
ambient air temperature for operation
|
-25...70 °C
|
|
ambient air temperature for storage
|
-40...70 °C
|
|
vibration resistance
|
15 gn 10...500 Hz IEC 60068-2-6
|
|
shock resistance
|
100 gn IEC 60068-2-27
|
|
overvoltage category
|
Class II IEC 61140
|
|
IP degree of protection
|
IP65 IEC 60529
|
|
IK degree of protection
|
IK08 EN 50102
|
|
mechanical durability
|
1000000 cycles
|
|
cable entry
|
Rubber sleeve with stepped entry 7...15 mm
|
|
contact code designation
|
A600 AC-15 240 V 3 A IEC 60947-5-1 appendix A
A600 AC-15 600 V 1.2 A IEC 60947-5-1 appendix A Q600 DC-13 250 V 0.27 A IEC 60947-5-1 appendix A Q600 DC-13 600 V 0.1 A IEC 60947-5-1 appendix A |
|
[Ithe] conventional enclosed thermal current
|
10 A
|
|
[Ui] rated insulation voltage
|
600 V 3 IEC 60947-1
|
|
[Uimp] rated impulse withstand voltage
|
6 kV IEC 60947-1
|
|
contact operation
|
Slow-break
Staggered |
|
resistance across terminals
|
<= 25 MOhm
|
|
operating force
|
13...15 N
|
|
short-circuit protection
|
10 A fuse protection cartridge gG
|
|
rated operational power in W
|
40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C
48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C |
|
terminals description ISO n°1
|
(13-14)NO
(23-24)NO_CL |
|
terminals description ISO n°2
|
(11-12)NC
|
|
terminal identifier
|
(11-12)NC
(13-14)NO |
|
product weight
|
0.27~0.36kg
|
Pendant control station XAC-A
2 pushbuttons/2 pushbuttons 1 Emergency stop/
4 pushbuttons/4 pushbuttons 1 Emergency stop
XACA271/XACA2713/XACA471/XACA4713
|
Main
|
|
|
range of product
|
Harmony XAC
|
|
product or component type
|
Pendant control station
|
|
device short name
|
XACA
|
|
Complementary
|
|
|
control station type
|
Double insulated
|
|
enclosure material
|
Polypropylene
|
|
electrical circuit type
|
Control circuit
|
|
enclosure type
|
Complete ready for use
|
|
control station application
|
Control of single speed hoist motor
|
|
|
2 push-buttons
|
|
2 push-buttons + 1 emergency stop
|
|
|
4 push-buttons
|
|
|
4 push-buttons + 1 emergency stop
|
|
|
|
First push-button 1 NO raise, slow
Second push-button 1 NO lower, slow |
|
First push-button 1 NO raise, slow
Second push-button 1 NO lower, slow Stop push-button Ø 30 mm 1 NC latching |
|
|
First push-button 1 NO raise, slow
Second push-button 1 NO lower, slow
Fourth push-button 1 NO left, slow Third push-button 1 NO right, slow |
|
|
First pushbutton 1 NO raise, slow
Second pushbutton 1 NO lower, slow Fourth pushbutton 1 NO left, slow Third pushbutton 1 NO right, slow Stop push-button Ø 40 mm 1 NC latching |
|
|
product compatibility
|
ZB2BE101 for each direction
ZB2BE102 for emergency stop |
|
mechanical interlocking
|
With mechanical interlocking
|
|
control station colour
|
Yellow
|
|
connections - terminals
|
Screw clamp terminals 1 x 0.5...2 x 1.5 mm² with cable end
Screw clamp terminals 1 x 0.5...1 x 2.5 mm² without cable end |
|
standards
|
EN/IEC 60204-32
EN/IEC 60947-5-1 UL 508 CSA C22.2 No 14 |
|
product certifications
|
CCC
GOST |
|
protective treatment
|
TH
|
|
ambient air temperature for operation
|
-25...70 °C
|
|
ambient air temperature for storage
|
-40...70 °C
|
|
vibration resistance
|
15 gn 10...500 Hz IEC 60068-2-6
|
|
shock resistance
|
100 gn IEC 60068-2-27
|
|
overvoltage category
|
Class II IEC 61140
|
|
IP degree of protection
|
IP65 IEC 60529
|
|
IK degree of protection
|
IK08 EN 50102
|
|
mechanical durability
|
1000000 cycles
|
|
cable entry
|
Rubber sleeve with stepped entry 8...26 mm
|
|
[Ithe] conventional enclosed thermal current
|
10 A
|
|
[Ui] rated insulation voltage
|
600 V 3
|
|
contact operation
|
Slow-break
|
|
product weight
|
0.475~0.8kg
|
