Green/Red/Orange/Blue 24/12 VAC-DC
![]() |
![]() |
![]() |

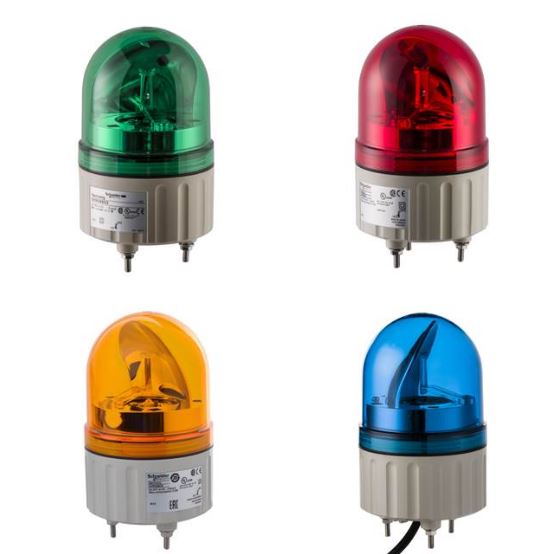

84 mm Rotating Mirror24/12 VAC-DC |
106 mm Rotating Mirror24/12 VAC-DC |
120 mm Rotating Mirror24/12 VAC-DC |
Main
|
|
range of product
|
Harmony XVR
|
product or component type
|
Prewired rotating mirror beacon
|
sound signalling
|
Without
|
device short name
|
XVR
|
mounting diameter
|
84 mm
|
IP degree of protection
|
IP23 conforming to IEC 60529
IP65 (with accessory) conforming to IEC 60529 |
[Us] rated supply voltage
|
24 V AC/DC
12 VAC-DC
|
light source
|
High luminosity LED
green/ red/ orange/blue
|
Complementary
|
|
material
|
ABS (acrylonitrile butadiene-styrene) (body part)
PC (globe) |
CAD overall width
|
84 mm
|
CAD overall depth
|
84 mm
|
product weight
|
0.3 kg
|
marking
|
CE
|
product mounting
|
By 3 M4 screws
|
supply voltage limits
|
21.6...26.4 V AC
19...30 V DC |
[Uimp] rated impulse withstand voltage
|
0.8 kV
|
current consumption
|
125 mA
|
flashing frequency
|
2.3 Hz
|
clamping connection capacity
|
0.83 mm²
|
AWG gauge
|
AWG 18
|
cable length
|
500 mm
|
Main
|
|
range of product
|
Harmony XVR
|
product or component type
|
Prewired rotating mirror beacon
|
sound signalling
|
Without
|
device short name
|
XVR
|
mounting diameter
|
106 mm
|
IP degree of protection
|
IP23 conforming to IEC 60529
IP55 (with accessory) conforming to IEC 60529 |
[Us] rated supply voltage
|
24 V AC/DC
12 VAC/DC
|
light source
|
High luminosity LED
green/ red/ orange/blue
|
Complementary
|
|
material
|
ABS (acrylonitrile butadiene-styrene) (body part)
PMMA (polymethyl methacrylate) (globe) |
CAD overall width
|
106 mm
|
CAD overall depth
|
106 mm
|
product weight
|
0.5 kg
|
marking
|
CE
|
product mounting
|
By 3 M4 screws
|
supply voltage limits
|
21.6...26.4 V AC
19...30 V DC |
[Uimp] rated impulse withstand voltage
|
0.8 kV
|
current consumption
|
125 mA
|
flashing frequency
|
2.3 Hz
|
clamping connection capacity
|
0.83 mm²
|
AWG gauge
|
AWG 18
|
cable length
|
400 mm
|
Main
|
|
range of product
|
Harmony XVR
|
product or component type
|
Prewired rotating mirror beacon
|
sound signalling
|
Without
|
device short name
|
XVR
|
mounting diameter
|
120 mm
|
IP degree of protection
|
IP23 conforming to IEC 60529
|
[Us] rated supply voltage
|
24 V AC/DC
2 VAC-DC
|
light source
|
High luminosity LED
green/ red/ orange/blue
|
Complementary
|
|
material
|
ABS (acrylonitrile butadiene-styrene) (body part)
AS (globe) |
CAD overall width
|
120 mm
|
CAD overall depth
|
120 mm
|
product weight
|
0.5 kg
|
marking
|
CE
|
product mounting
|
By 3 M5 screws
|
supply voltage limits
|
21.6...26.4 V AC
19...30 V DC |
[Uimp] rated impulse withstand voltage
|
0.8 kV
|
current consumption
|
125 mA
|
flashing frequency
|
2.3 Hz
|
clamping connection capacity
|
0.83 mm²
|
AWG gauge
|
AWG 18
|
cable length
|
400 mm
|
