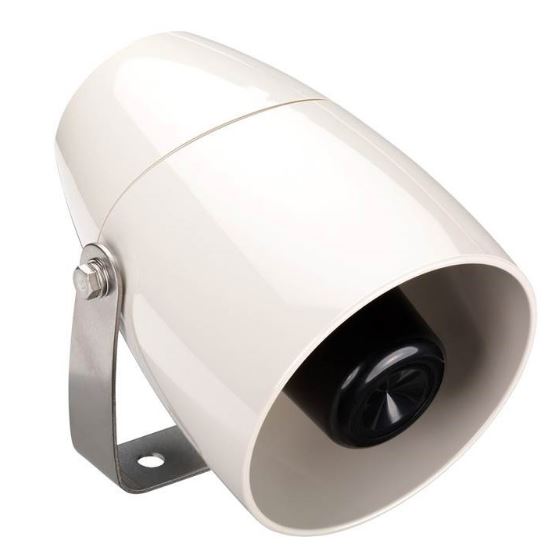

Multi-sound Siren 12/24VDC 2 Tones Siren Speaker Siren Alarm
|
Range of product
|
Harmony XVS
|
||
|
Product or component type
|
Siren
|
||
|
Device short name
|
XVS
|
||
|
Colour
|
White
|
||
|
Signalling type
|
2 tones siren
|
||
|
[Us] rated supply voltage
|
12 V AC/DC
24 V AC/DC |
||
|
Noise level
|
106 dB (continuous or intermittent tone) at 1 m
|
||
|
Material
|
PC (body)
|
||
|
Marking
|
CE
|
||
|
[Uimp] rated impulse withstand voltage
|
0.8 kV
|
||
|
Current consumption
|
500 mA
300 mA at 24 V |
||
|
Clamping connection capacity
|
<= 1 x 1.5 mm²
|
||
|
Electrical connection
|
Cable : 6.5...8.5 mm
|
||
|
Height
|
114 mm
|
||
|
Width
|
114 mm
|
||
|
Depth
|
153.2 mm
|
||
|
Mounting diameter
|
22 mm
|
||
electronic alarm sound alarm siren speaker siren alarm electronic siren

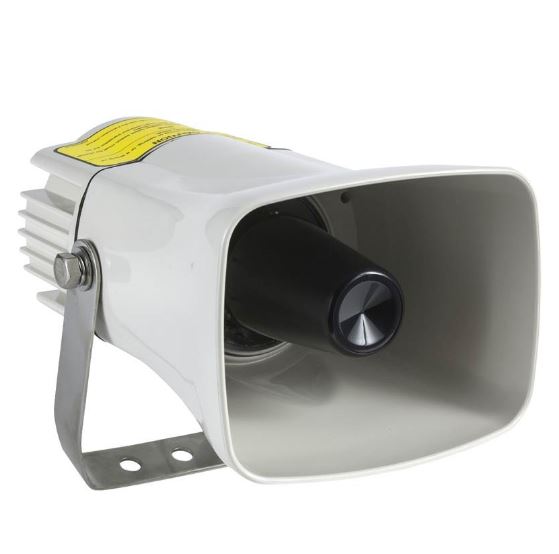

Multi-sound Siren Siren Speaker Siren Alarm
|
Range of product
|
Harmony XVS
|
||
|
Product or component type
|
Multisound siren
|
||
|
Device short name
|
XVS
|
||
|
Colour
|
White
|
||
|
Material
|
PC (polycarbonate) (back cover)\
ASA (Acrylonitrile Styrene Acrylate) (front) ASA (Acrylonitrile Styrene Acrylate) (back) |
||
|
Marking
|
CE
|
||
|
Mounting support
|
Bracket
|
||
|
[Uimp] rated impulse withstand voltage
|
0.8 kV
|
||
|
Current consumption
|
250 mA at 12 V
350 mA at 24 V |
||
|
Electrical connection
|
Cable : 6.5...8.5 mm, 0.33 mm² / AWG 22 (signalling circuit)
Cable : 6.5...8.5 mm, 0.52 mm² / AWG 20 (power circuit) |
||
electronic alarm sound alarm siren speaker siren alarm electronic siren
|
Width
|
140 mm
|
||
|
Height
|
114 mm
|
||
|
Depth
|
223 mm
|
||
|
Fixing mode
|
3 holes Ø 9 mm
|
||

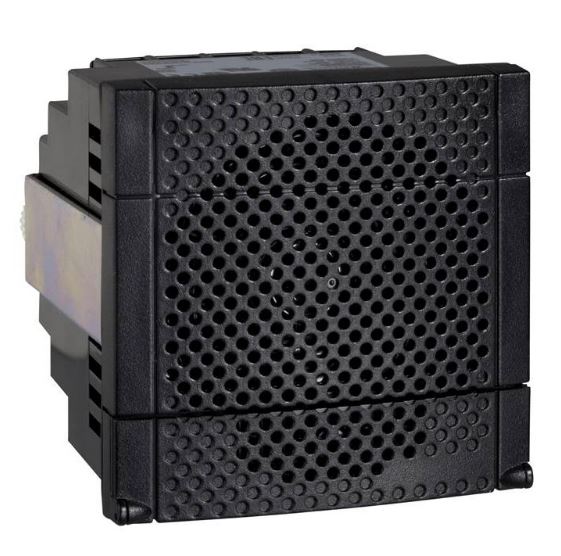

Electronic Alarm NPN Black Electronic Alarm Speaker Siren Alarm
|
Range of product
|
Harmony XVS
|
||
|
Product or component type
|
Electronic alarm
|
||
|
Device short name
|
XVS
|
||
|
Colour
|
Black
|
||
|
Material
|
PC (polycarbonate) (terminal cover)
ABS (acrylonitrile butadiene-styrene) (body) |
||
|
Marking
|
CE
|
||
|
Overvoltage category
|
Class II conforming to EN/IEC 61140
|
||
|
[Us] rated supply voltage
|
12...24 V DC
|
||
|
[Uimp] rated impulse withstand voltage
|
0.8 kV
|
||
|
Current consumption
|
117 mA at 12 V
125 mA at 24 V 158 mA at 12 V |
||
|
Clamping connection capacity
|
<= 1 x 1.5 mm²
|
||
electronic alarm sound alarm siren speaker siren alarm electronic siren
|
Width
|
72 mm
|
||
|
Height
|
72 mm
|
||
|
Depth
|
69.3 mm
|
||
|
Weight
|
0.18 kg
|
||
|
Mounting support
|
72 mm DIN rail
|
||
